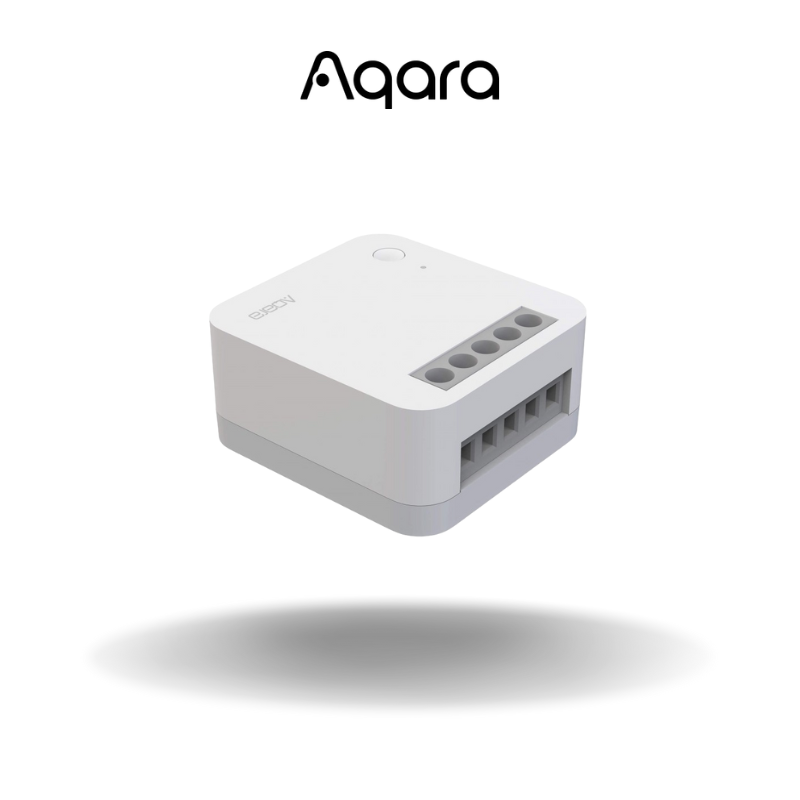

Aqara Smart Switch Module T1 with Neutral

Description

The Aqara Smart Switch Module T1 with Neutral is a compact smart relay that upgrades your traditional switches into smart, remote-controlled devices. With Zigbee 3.0 support, this module ensures fast, stable, and energy-efficient operation.

Designed for high-power appliances, it supports up to 10A (resistive load) and 2500W output, making it suitable for lighting, fans, and other home devices. Through the Aqara Home App, users can remotely control appliances, create automations, and integrate with Apple HomeKit, Alexa, and Google Assistant for voice control.

Key Features:

✔ Smart Home Integration – Works with Aqara Hub, Apple HomeKit, Alexa, and Google Assistant.
✔ High Load Capacity – Supports 10A resistive load, handling appliances up to 2500W.
✔ Remote Control & Automation – Manage devices via the Aqara Home App.
✔ Zigbee 3.0 Protocol – Ensures faster response and better stability.
✔ Compact & Easy Installation – Fits easily behind wall switches.

💡 Note: Requires an Aqara Hub for smart functionality.

Specifications

Product Model:

SSM-U01

Product Dimensions:

42.9×40×19.9 mm

Product Color:

White

Net Weight (kg):

0.03

Gross Weight (kg):

0.05

Input Power:

100-250VAC,50/60Hz, μ

Input Current:

MAX 10A (resistive load)

Rated Load:

Min 3W, Max 2500W (resistive load), μ Please do not overload it.(Please make sure that the 10A over-current protection circuit breaker on the front end of this product works normally before it powers on)

Wireless Connection:

Zigbee 3.0

Wireless Standard:

IEEE 802.15.4

Wireless Frequency:

2.4GHz (2400～2483.5MHz)

Receiver Sensitivity:

-102dBm

Effective Communication Distance:

30m (indoors)

Operating Temperature:

0°C~ 35°C

Operating Humidity:

5% ~ 95% RH, non-condensing

Storage Temperature:

-10°C~ 50°C
